Mechanical Press

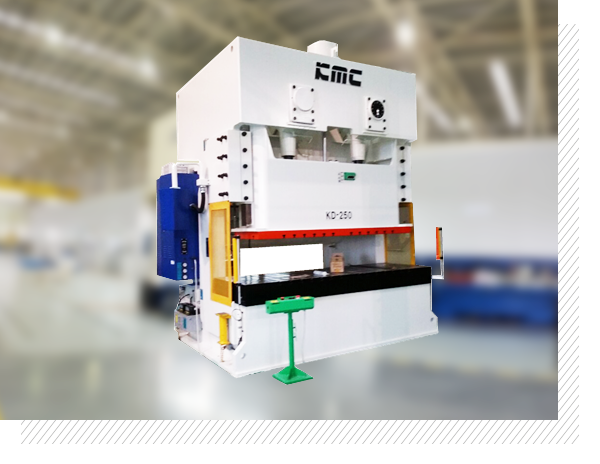

C-Type Double Crank Press
C-Type Double Crank Press

KD Series 200/250/300/400

▪ Suited for transfer, progressive work because of its wide slide and bolster plate
▪ This 6 phases structure guide type is unaffected by eccentric axial loading and shows exceptional precision
▪ Guarantees reliability and high torque via wet multi type clutch / brake
▪ Protects the mold and press by using Hydraulic overload protector system
▪ Improves equipment by adding a touch screen on the pendant shaped control which shows mechanical info, abnormalities, etc.

▸ Slide adjustment system　　 ▸ Photoelectric safety device
▸ Recirculating auto oil lublication system　　 ▸ Air ejector

Standard Specifications

Standard Specifications
Specification Unit KD-200 KD-250 KD-300 KD-400
Capacity ton 200 250 300 400
Limit of Capacity mm 7 7 7 7
Stroke mm 200 250 300 350
Number of Stroke spm 35 35 30 30
Die height mm 480 550 600 600
Adjustment of Slide mm 120 120 150 150
Area of Slide mm 2,200×850 2,500×900 2,600×900 2,700×1,000
Area of Bolster mm 2,500×900 2,700×950 2,800×1,000 2,900×1,100
Working height mm 950 1,000 1,050 1,050
Main Motor Kw x p 18.5×4 22×4 30×4 37×4
Adjusting Motor Kw x p 2.2×4 2.2×4 3.7×4 3.7×4
Die Cushion(Option)
Die Cushion(Option)
Capacity ton 10×2 12.5×2 12.5×2 15×2
Stroke mm 120 130 160 160
Pad Area mm 1,600×500 1,750×550 1,800×560 1,900×720
Air Pressure kg/cm² 5.5 5.5 5.5 5.5


Features

  • ▪ Equipped with wet type clutch and brake system
  • ▪ Good durability for long time continuous working
  • ▪ Better workability for large size product
  • ▪ Good combination for automation and rationalization

Option Item

  • ▪ A.C Inverter / V.S Motor
  • ▪ Die cushion
  • ▪ Anti-vibration unit
  • ▪ Quick Die Change System
  • ▪ Knock out device
  • ▪ Auto transfer device
  • ▪ Short Stroke High Speed
  • ▪ Long Stroke
