Mechanical Press

열연

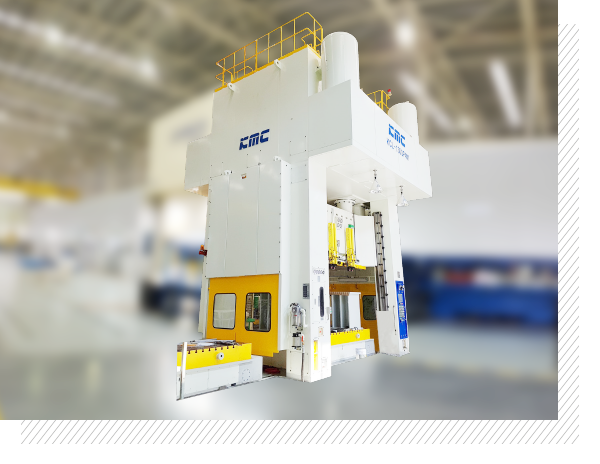

H-Type Crankless Press

KCL-P4 Series 400/500/600/800/1000/1200/1500/2000/2400

Strong H-type frame structure and a crankless driving device. Structure that is strong against impact of the drive unit that complements the drawbacks of crank.
▪ Wet clutch brake of high efficiency
▪ Hydraulic overload protector system
▪ Slide adjustment system
▪ Recirculating auto oil lublication system
▪ 8 phases structure
▪ Strong frame guaranteeing motional precision
▪ Broad working space
▪ Photoelectric safety device
▪ Air ejector
▪ Preset counter
▪ Suitability for extensive sheet metal working of blanking, piercing, stamping, etc.

Standard Specifications

Standard Specifications
Specification Unit KCL-400P4 KCL-500P4 KCL-600P4 KCL-800P4 KCL-1000P4 KCL-1200P4 KCL-1500P4 KCL-2000P4 KCL-2400P4
Capacity ton 400 500 600 800 1,000 1,200 1,500 2,000 2,400
Limit of Capacity mm 13 13 13 13 13 13 13 13 13
Stroke mm 500 500 500 600 600 600 700 800 800
Number of Stroke spm 22 22 22 20 20 18 18 18 18
Die height mm 1,000 1,000 1,000 1,000 1,200 1,200 1,200 1,200 1,200
Adjustment of Slide mm 400 400 400 400 500 500 500 500 500
Area of Slide mm 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,500 × 1,800 4,000 × 2,200 4,500 × 2,500 4,700 × 2,600
Area of Bolster mm 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,200 × 1,800 3,500 × 1,800 4,000 × 2,200 4,500 × 2,500 4,700 × 2,600
Working height mm 650 650 650 650 650 650 700 800 800
Die Cushion(Option)
Die Cushion(Option)
Capacity ton 50 70 80 100 120 150 150 200 200
Stroke mm 200 250 250 250 250 300 300 300 300
Pad Area mm 2,400 × 1,200 2,400 × 1,200 2,400 × 1,200 2,400 × 1,200 2,700 × 1,500 2,700 × 1,500 3,250 × 1,890 3,810 × 1,920 3,810 × 1,920
Air Pressure kg/cm² 5 5 5 5 5 5 5 6 6


Features

  • ▪ Rigid driving system
  • ▪ Compack design with stage covers
  • ▪ Robot operation available
  • ▪ Equipped with wet type clutch and brake system
  • ▪ Used to extensive sheet metal of working of blanking, piercing, stamping, etc.

Option Item

  • ▪ DC Motor
  • ▪ Die cushion
  • ▪ Anti-vibration unit
  • ▪ Quick Die Change System
  • ▪ Moving bolster
  • ▪ Knock out device
  • ▪ Auto transfer device
  • ▪ PLC system(Programmable Logic Controller)
  • ▪ Micro inching device
  • ▪ Operation management system
