Link, Knuckle Press

ksl

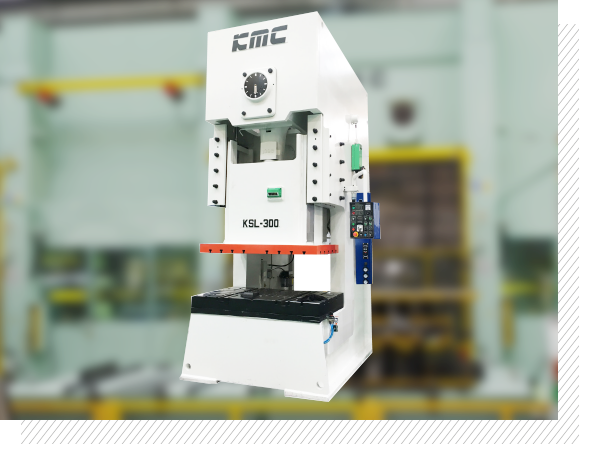

C-Type Single Crank Link Press

KSL Series 150/200/250/300/400

▪ Exceptional plastic working, and shows high efficiency compared to crank press
▪ Guarantees reliability via improved link
▪ This 6 phases structure guide type is unaffected by eccentric axial loading and shows exceptional precision
▪ Guarantees reliability and high torque via wet multi type clutch / brake
▪ Improves equipment by adding a touch screen on the pendant shaped control which shows mechanical info, abnormalities, etc.
▪ Apt for high quality product production
▪ Reduces impact and extends mold life

▸ Slide adjustment system　　 ▸ Photoelectric safety device
▸ Recirculating auto oil lublication system　　 ▸ Air ejector

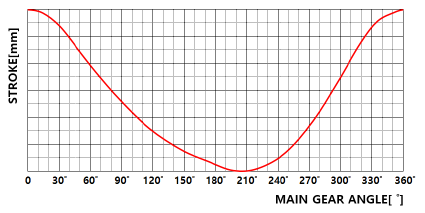

Slide Motion-curve



Standard Specifications

Standard Specifications
Specification Unit KSL-150 KSL-200 KSL-250 KSL-300 KSL-400
Capacity ton 150 200 250 300 400
Limit of Capacity mm 7 7 7 7 7
Stroke mm 200 250 250 300 350
Number of Stroke spm 45 40 35 30 30
Die height mm 480 500 550 600 600
Adjustment of Slide mm 100 120 120 150 150
Area of Slide mm 1,150 × 600 1,300 × 650 1,400 × 750 1,500 × 800 1,600 × 900
Area of Bolster mm 1,250 × 760 1,400 × 850 1,600 × 920 1,700 × 1,000 1,800 × 1,100
Working height mm 900 950 1,000 1,050 1,050
Main Motor kw × p 15 × 4 18.5 × 4 22 × 4 30 × 4 30 × 4
Adjusting Motor kw × p 1.5 × 4 1.5 × 4 1.5 × 4 1.5 × 4 3.7 × 4
Die Cushion(Option)
Die Cushion(Option)
Capacity ton 8 10 12 16 20
Stroke mm 70 100 120 160 160
Pad Area mm 420 × 300 420 × 300 570 × 420 600 × 460 600 × 460
Air Pressure kg/cm² 5.5 5.5 5.5 5.5 5.5


Features

  • ▪ Performance : Used for drawing work and is useful for high BDC(Bottom Dead Center).
  • ▪ Efficiency : Work speed slows down on the working part.
  • ▪ Product forming : Useful for forming because of its slow and steady axle speed.
  • ▪ Productivity : Able to improve cycle time by setting slow processing speed and faster elevation speed of the press.
    The cycle time is affected by elevation speed in the automated operation.
  • ▪ Mechanical Vibration : Vibrations such as blanking are reduced due to slower working speed.

Option Item

  • ▪ A.C Inverter / V.S Motor
  • ▪ Die cushion
  • ▪ Anti-vibration unit
  • ▪ Quick Die Change System
  • ▪ Knock out device
  • ▪ Auto transfer device
  • ▪ Short Stroke High Speed
  • ▪ Long Stroke
